2320157 QUINT-DIODE12-24DC2X201X40 Phoenix Contact DIN Rail diode Module Input

Brand Name : Phoenix Contact

Model Number : 2320157 QUINT-DIODE12-24DC2X201X40

Certification : COO & COC

Place of Origin : China

MOQ : 1

Price : $50

Payment Terms : T/T,Alipay,Paypal

Supply Ability : 99+

Delivery Time : 3-5 days

Packaging Details : Brand new and original

Shipping Weight : 4 kg

Packing Size : 25*14*13 cm

Condition : Brand new and original

Warranty : 1 year

Trade Terms : EXW, DAP, FOB, CIF

Express Delivery : DHL, FedEx, UPS

Contact Now

2320157 QUINT-DIODE12-24DC2X201X40 Phoenix Contact DIN Rail diode Module Input

The Phoenix Contact 2320157 (officially QUINT-DIODE/12-24DC/2X20/1X40) is a high-performance diode-based redundancy module engineered to ensure uninterrupted 24 V DC power in critical industrial applications. Designed as part of the QUINT POWER ecosystem, this DIN rail-mounted device enables seamless 1+1 or 1+1+1 power supply redundancy by decoupling multiple power sources—preventing backfeed, eliminating single points of failure, and maintaining system availability during power supply maintenance or failure.

With support for two inputs of up to 20 A each and a combined output of up to 40 A, the 2320157 is ideal for powering high-demand PLC cabinets, safety controllers, DCS systems, and automation networks where downtime is not an option. Its advanced thermal management, low forward voltage drop, and integrated monitoring features make it significantly more efficient and reliable than conventional diode couplers.


Product Overview: Phoenix Contact 2320157


Manufacturer Phoenix Contact GmbH & Co. KG
Product Series QUINT POWER – Redundancy & Decoupling Modules
Order Number 2320157
Functional Model QUINT-DIODE/12-24DC/2X20/1X40
Type Passive diode redundancy module for 24 V DC systems
Input Configuration 2 independent inputs (IN1, IN2)
Max Input Current per Channel 20 A continuous

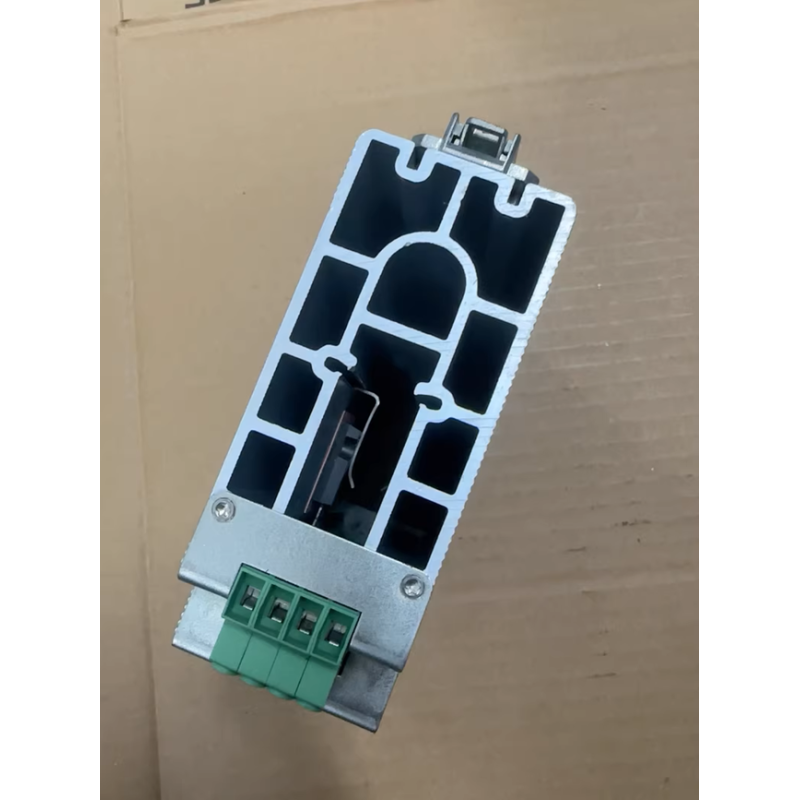

Product details pictures


2320157 QUINT-DIODE12-24DC2X201X40 Phoenix Contact DIN Rail diode Module Input
